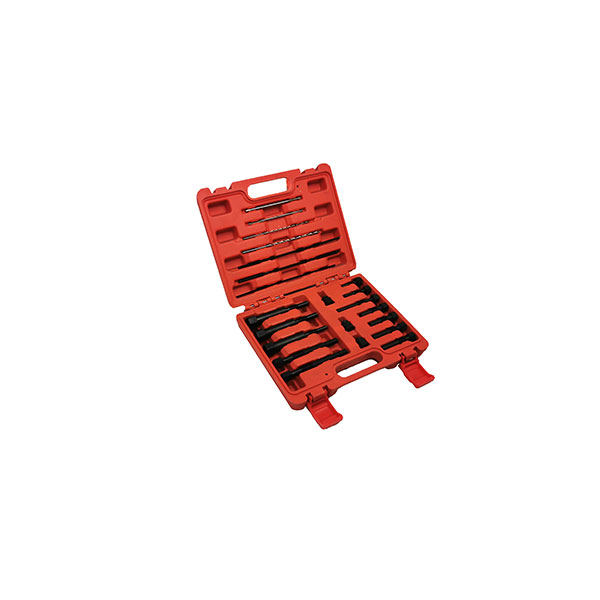

Glow plug electrodes removal tool set, M8 & M10

• This tool is used for dismantling glow plug electrodes.
  It is suitable for glow plug threads M8 x 1.0 – M10 x 1.0 – M10 x 1.25.

• Enables the supplied glow plug adapter to be extracted by drilling/tapping the broken element.

• Comes with 7 drill/tap guides and 5 glow plug extraction adapters with M8 or M10 threads.

Tap sizes :
M8 x 1.0 - M10 x 1.0 - M10 x 1.25
M3 x 0.5 tap 100 mm
M4 x 0.7 tap 100 mm
Special drills : 2.5 x 120 mm - 3.3 x 140 mm
180 mm pulling bolt
